Data Types

·   Regular grid data

·   Random distributed data


Plot Types

·      Horizon modes: density, grid, contour, triangle, and combined modes

·      Triangulation, regular/irregular grid, and contour displays

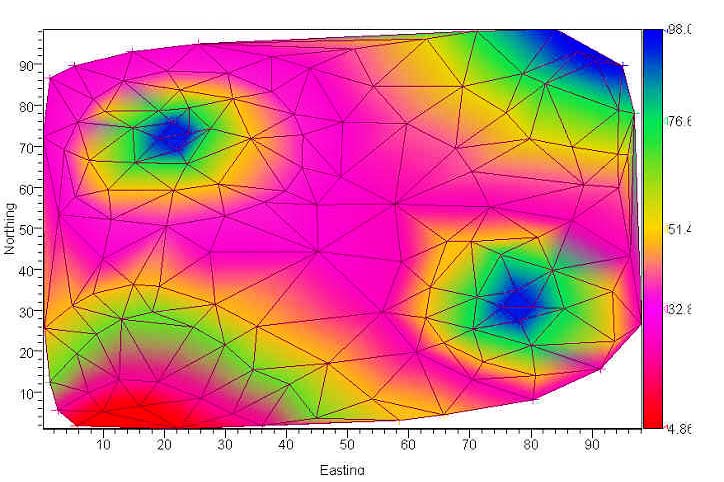

Contour display example                   Triangulation display example


Edit

·      Color modification from color bar control

·      Multiple levels of zoom for detailed area display and editing

·      Undefined area manipulation

·      Real time mathematic computation

·      Built-in, customizable menus

·      Point edit: pen size support, point value define undo.

·      Area edit: area define, area release, area inside fill, area outside fill, area smooth, area erase, undo.

·      Raw data point edit: value define, point define, undo.

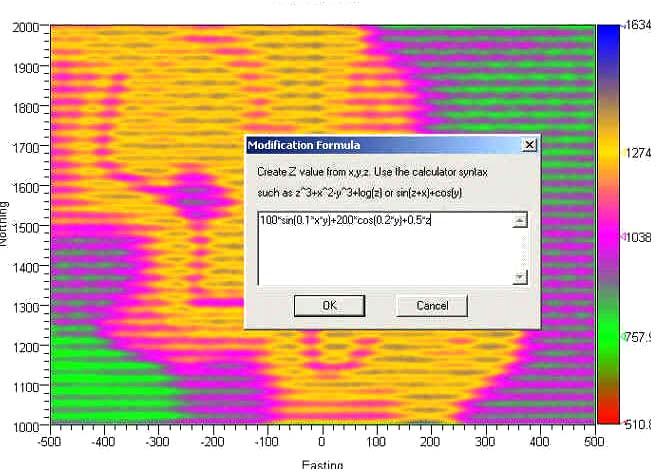

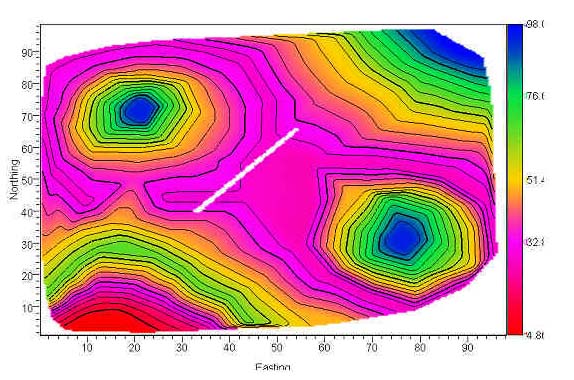

Real time math computation example              Undefined contour area example

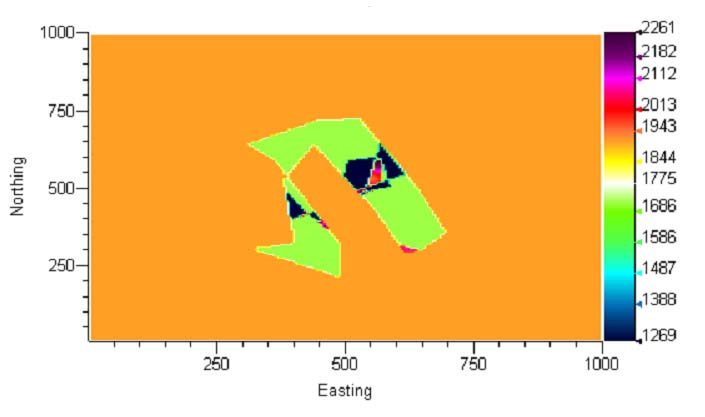

Area edit: fill inside polygon                               Area edit: fill outside polygon

Convert

·    Data conversion: grid data input in a supported format will produce an output in a desired format.

·    Regular grid mode and raw data mode


Import, Export and Print

• Open grid files (ZMap, Surfer, ArcView, GOCAD), raw data (Ascii raw data, xyz or triangulated data)
• Save data files EMF( windows enhanced metal file) formats
• Print directly to printer

Language support

• Multiple language support, such as English, Chinese, Spanish, Japanese, etc.

Environment

• Any environment that support ActiveX
• Design time and real time support
• End user and developer usage
