BYLog: More Features

Data Types

• Standard LAS file (version 2.0 and 3.0)
• Database
•  XML file

Plot Types

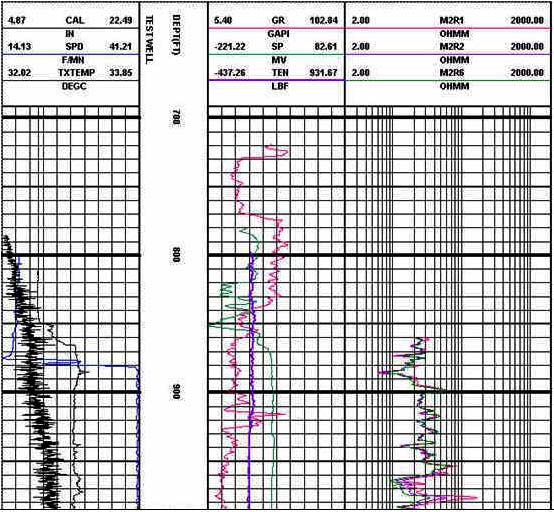

• x-y lines only (scale style)
• filled polygons (choose fill pattern and color for each line)



X-Y scale style



Export and Print

• Save data files in EMF( windows enhanced metal file) format.
• Print directly to printer.

Editing

• Cross plot support: plot one data curve against another by fill in solid color or pattern between them.
• Pre-defined or user-defined BMP patterns loaded into the control
• Curve properties: color, line width, line type, fill against left or right side, optional pattern fill
• Direct data editing within BYLog: click and drag, mouse, or modification formula
• Built-in, customizable menus
• Track properties for each track: width, type, vertical grid etc.
• Multiple levels of zoom to allow user to display and edit detailed areas

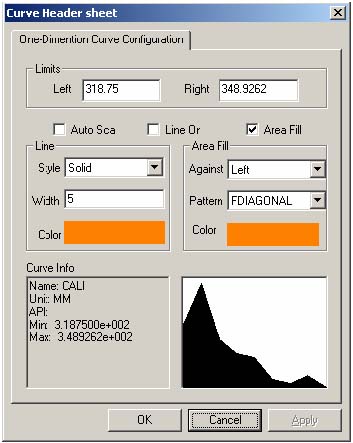

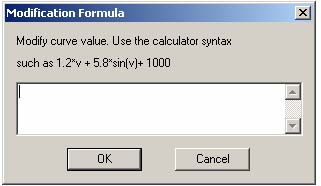

Upper left: modify                                                   Upper right: Change curve properties

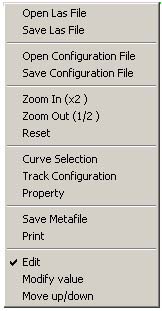

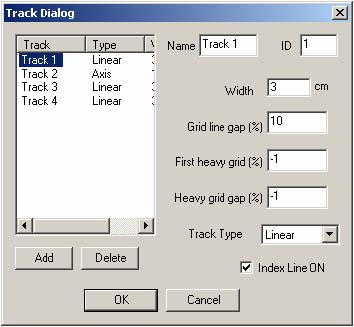

Lower left: Track various curve properties             Lower right: built-in, customizable menus

Language support

• Multiple language support, such as English, Chinese, Spanish, Japanese, etc.

Environment

• Any environment that supports ActiveX
• Design time and real time support
• End-user and developer usage
