• Input standard SEGY seismic data: 32 bit float, char or 16 bit integer

Plot Types

• Density display, wiggle display, and combinations
• Multiple or single ensemble display
• Color-filled display mode

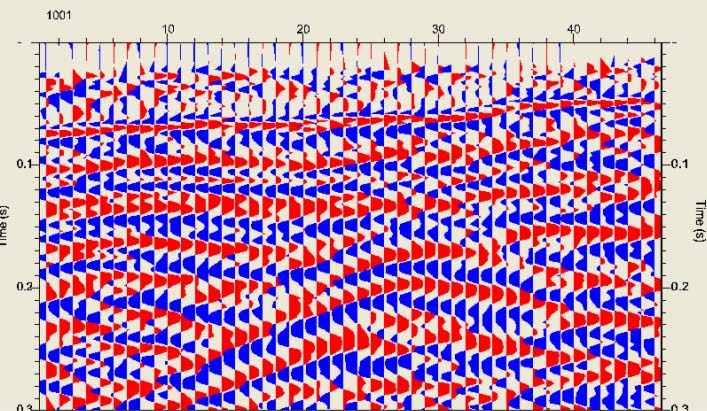

   Wiggle display only                     Simultaneous Wiggle and Density display



 Edit

• 2D or 3D seismic data set: shot or CDP.
• No file size limitation
• Configurable settings of color, font, annotation.
• Color map configuration, save and open.
• Interpretation capability to allow user pick and track horizon (2 or 3D)
• Side by side display for comparison, editing, and processing
• Interactive zone editing support
• Traces selection and exportation to ASCII file for further study.
• Save interpretation results into wire frame horizon.
• Header information view
• Multiple levels of zoom for more detailed study.
• Built-in, customizable menu
•

Process Local and Remote Files

• Read standard .sgy files from both local directories and web sites.

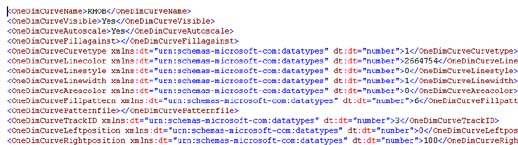

• Save and read xml configuration files.

Save Curves Information

• Save curves to clipboard for being displayed in other applications.
• Display seismic data and well log data side-by-side or log data on top of seismic data.

Import, Export and Print

• Save data files EMF (windows enhanced meta file) formats
• Print directly to printer

Language support

• Multiple language support, such as English, Chinese, Spanish, Japanese, etc.

Environment

• Any environment that supports ActiveX
• Design time and real time support
• End user and developer usage
